ITEMS

CEDAR003

System

Main Processor

High Performance ARM9 Embedded Microprocessor

Operating system

Embedded Linux OS

Sensor

Image Sensor

CMOS Sensor, 0.3 Megapixel.

Lens

3.6mm (IR lens)

Lens Vieing Angle

90°

Min. Illumination

0.3LUX/F1.2

Night vision

10 pcs IR LEDs, Night visibility up to 10meters

IR-Cut

Built-in IR Cut,With self-check function,Double optical fliter automatic switch, no color deviation indoor or outdoor.

Video

Video Compression

H.264

Signal System

PAL/NTSC

Frame Rate

PAL: 25 fps, NTSC: 30 fps

Video Resolution

VGA(640*480)

Video output

3.5 inch high definition display

Video Call

Free video call camera to camera, or Android,  iOS Mobile Terminal Device to camera.

Audio

Compression

G.711A

Audio Input

Built-in microphone or an external headset

Audio Output

Built-in speakers or an external headset

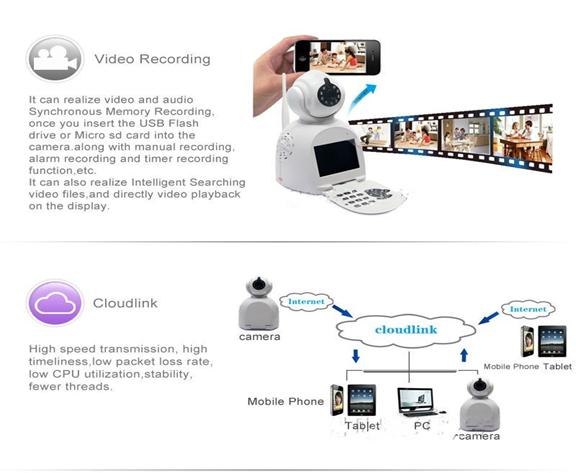

Recording
Manager

Recording Mode

Manual/Timer/Motion/Schedule

Local Storage

Support USB Disk(Up to 32G), Micro SD card.(UP to 32G)

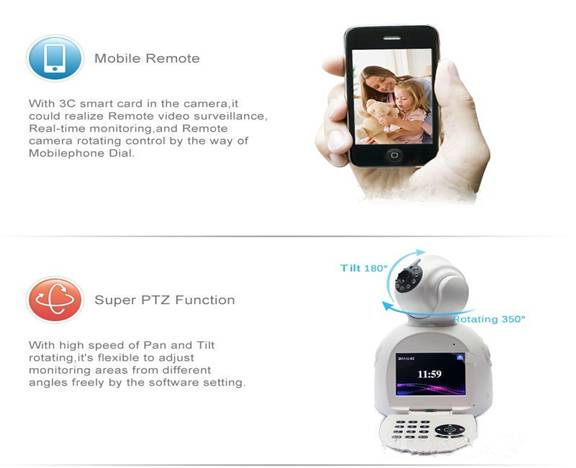

Pan/Tilt

Rotation Angle

Pan:355°,  Tilt: 90°

Alarm

Alarm Input

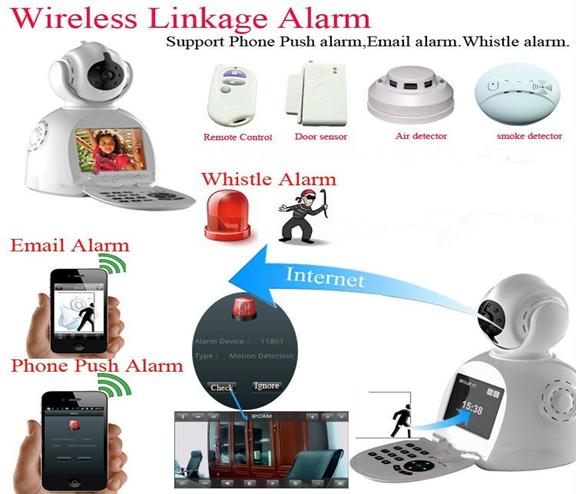

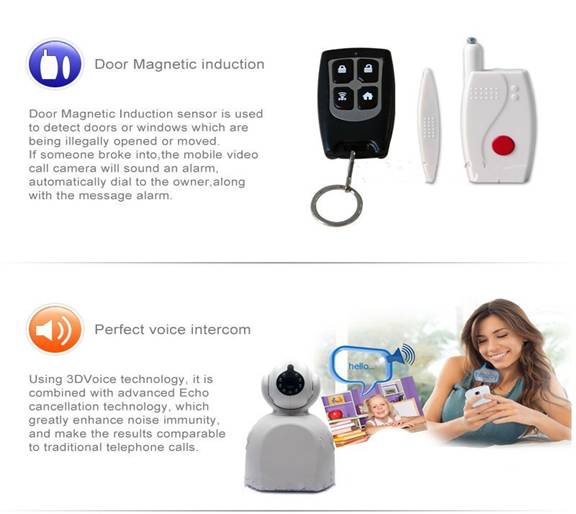

Support Learning wireless detector alarming input (up to  8-channel)

Alarm Triggered

Motion Detection Alarm, Whistle alarm,Email Alarm,Phone Push Alarm

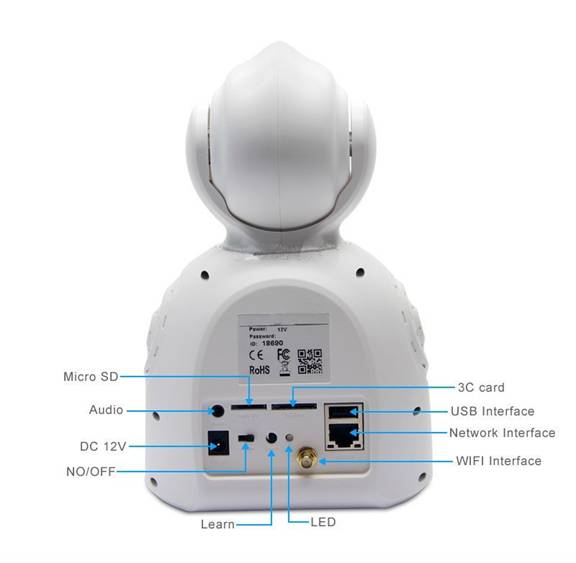

Interface

Ethernet Interface

RJ-45

USB

1x USB 2.0

TF

1xTF

Wifi

802.11 b/g/n, Support WEP,WPA,WPA2 Encryption

Headset

1x3.5 headphone jack

Learn Code

1x Learn code button( for setting the wireless detector code)

Battery slot

Support 2 pcs 18650 battery, stand-by time 10 hours.

Power

DC12V/1A

Others

Product Type

Plastic shell,Cartoon Robot/ Indoor use

Working Temperature

0~55°C

Working Humidity

10%-90% RH

Power Consumption

2W

Size

Item Size:135mmx135mmx220mm (LxWxH)

Package size:250mmx170mmx140mm (LxWxH)

Weight

Net weight: 600 g, gross weight: 850 g(Note:Actual Weight Final)

Accessories

1xAdaptor, 1x3C card, 1xAntenna,1x User Manual

Certification

Certification

CE, FCC, RoHS
